Supplied product references. Frame finish, logo and delivered configuration are confirmed for your project; original sample marks do not imply a brand partnership.
AI + Camera + Audio

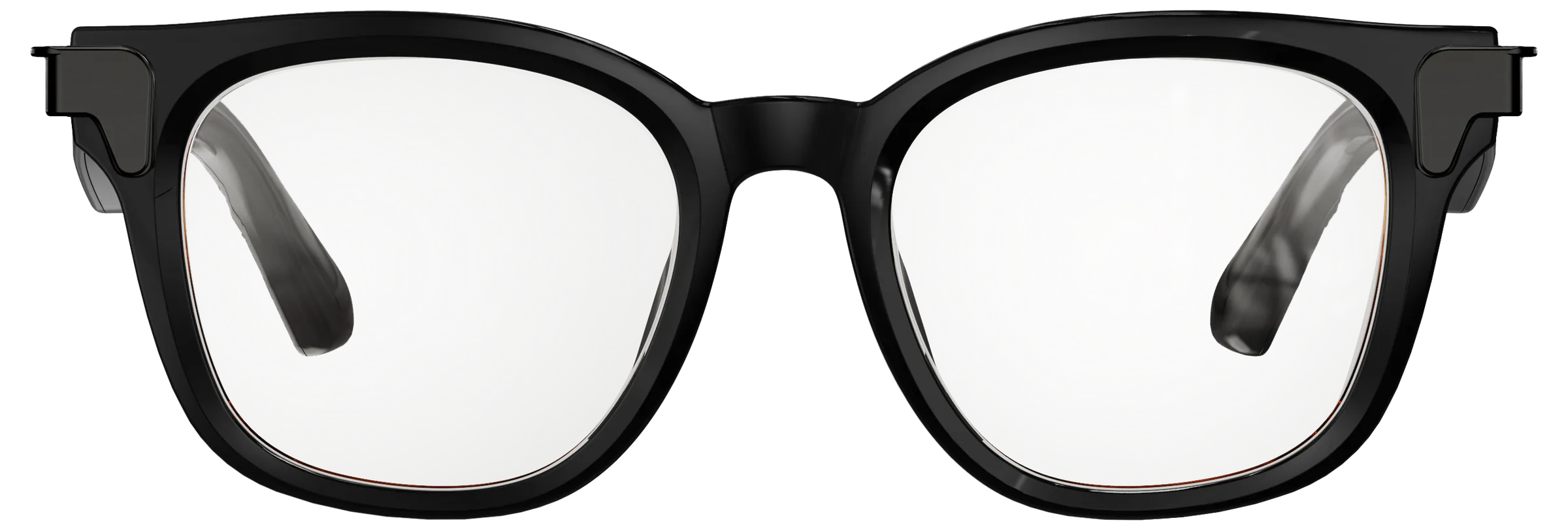

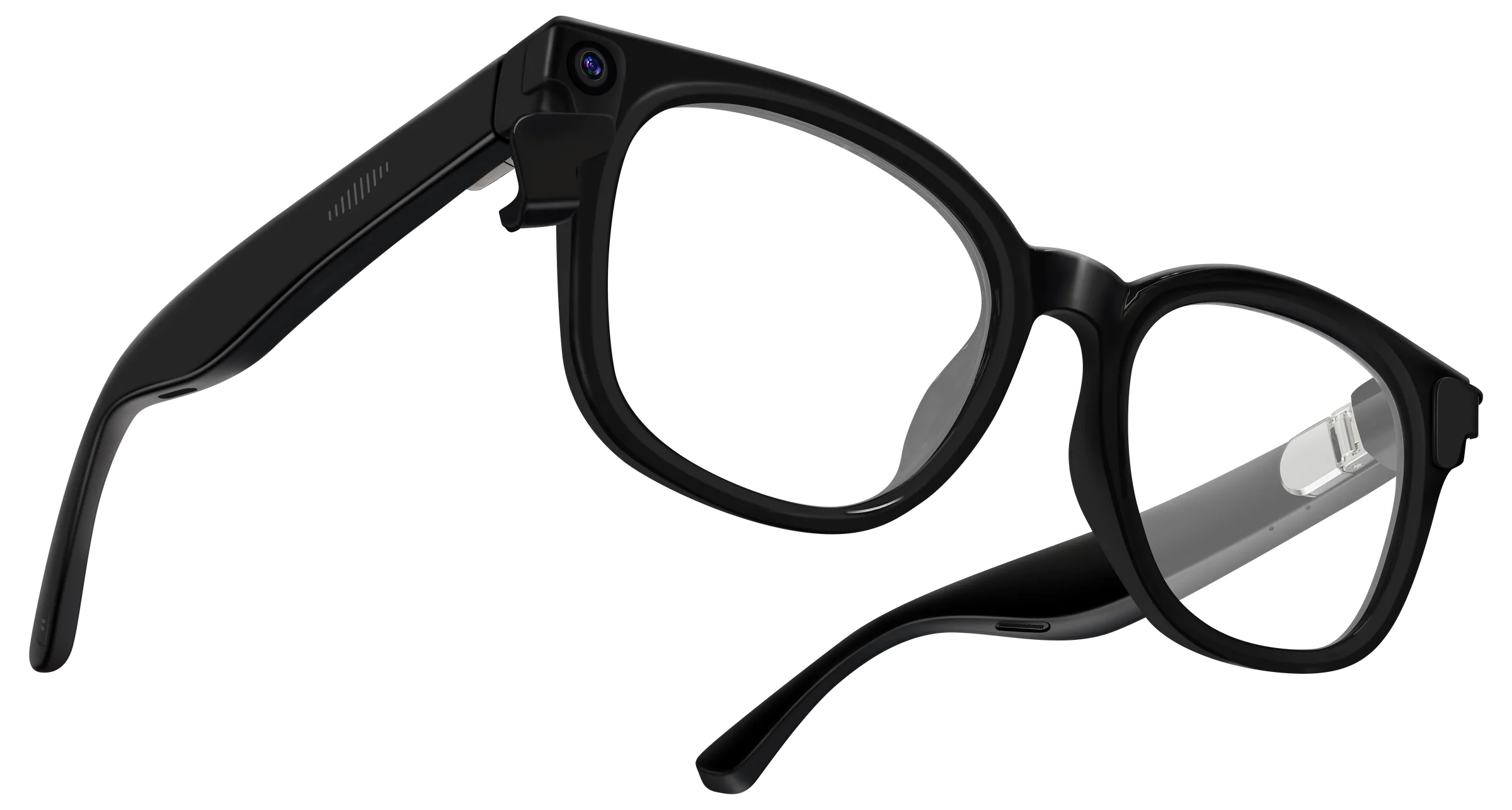

Scout One AI camera glasses
Model code: FA-C10
8 MP capture, hands free.

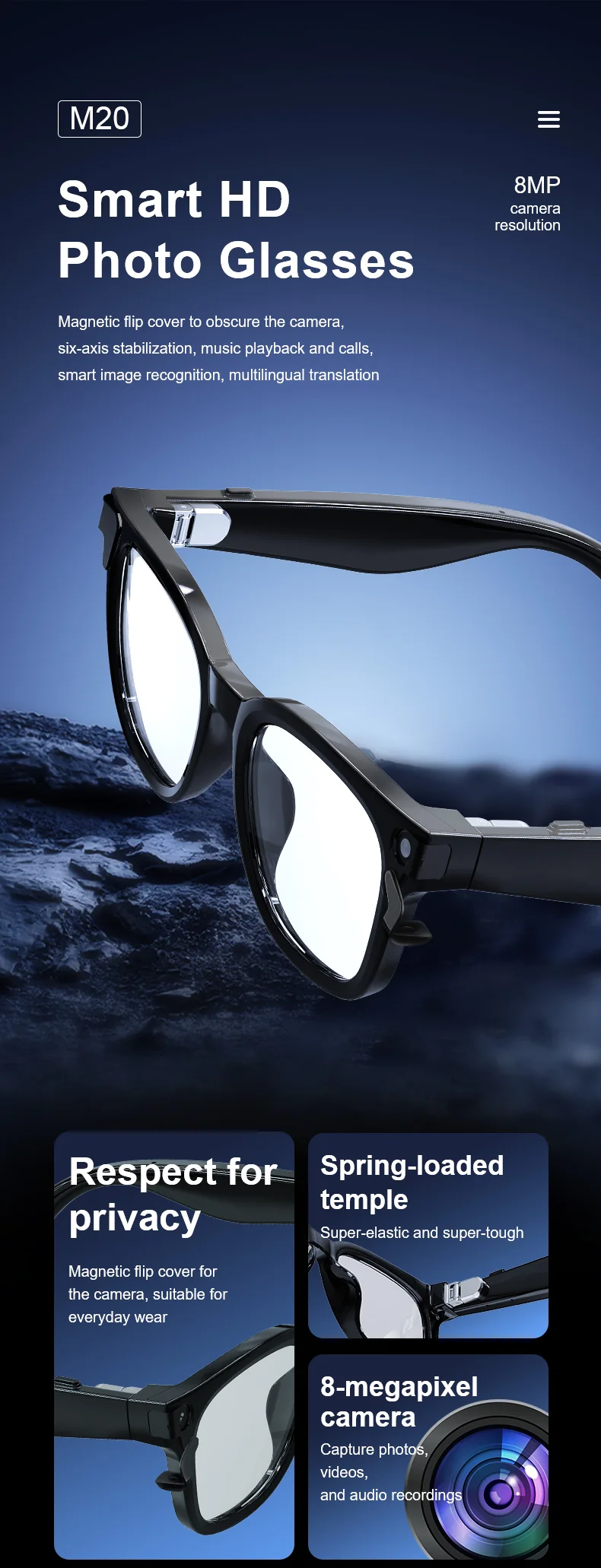

Scout One AI camera glasses combine an 8 MP camera with hands-free photo, video and audio capture. A physical camera cover can be opened, closed or removed. Four supplied colour options support private-label projects. App-connected AI features and supported languages are confirmed for your chosen configuration.
- Camera
- 8 MP, 1080p, 30 fps, six-axis stabilisation
- Memory & storage
- 64 MB RAM + 32 GB storage
- Battery capacity
- 220mAh
- Weight
- 56.5g
- Bluetooth version
- 5.3
- Dimensions
- 154*160*52mm
CE RED, FCC and RoHS certified — see the certificates.

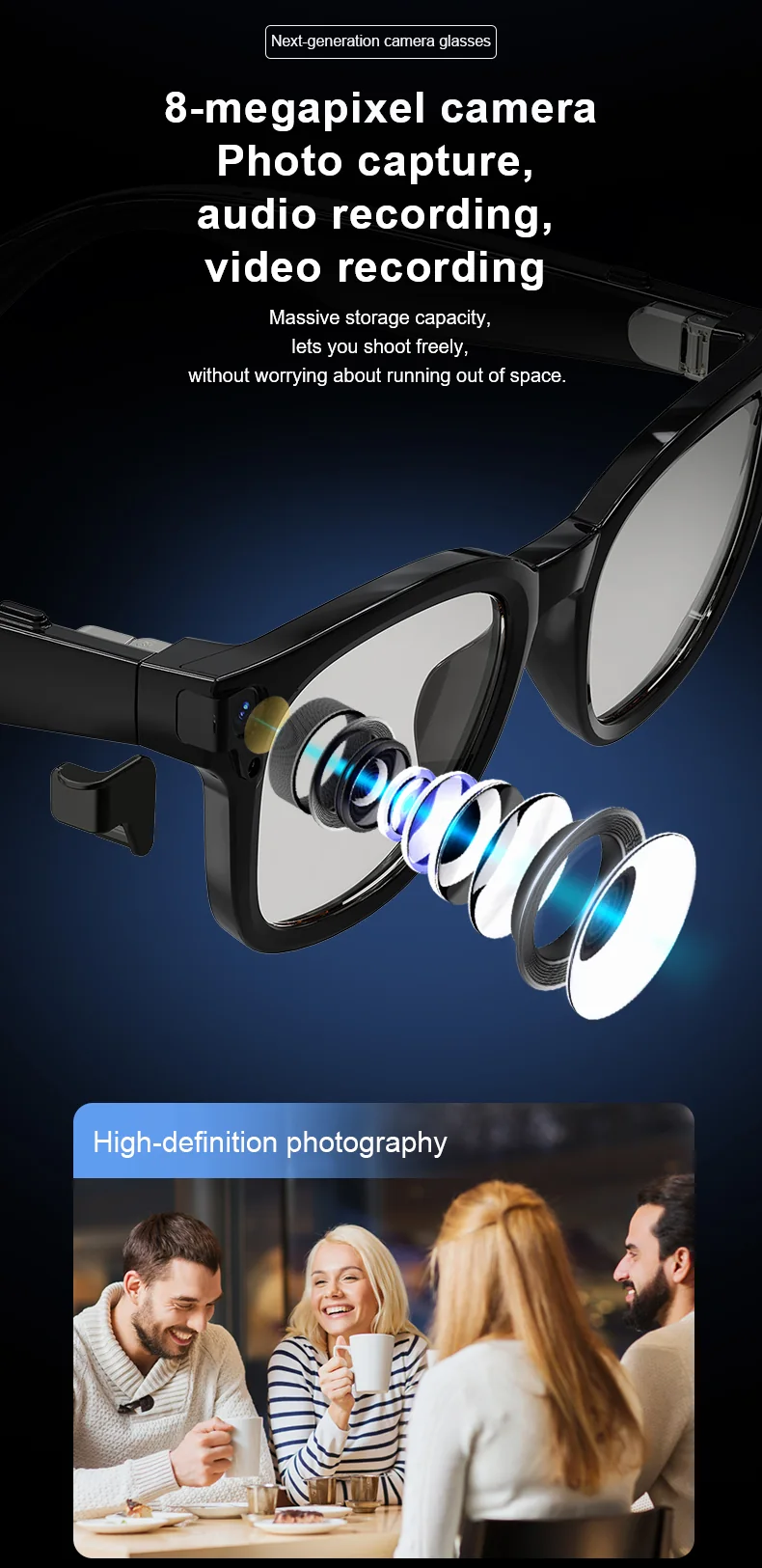

8 MP capture
Compare the actual photos and videos below. Sensor megapixels do not describe video frame resolution.

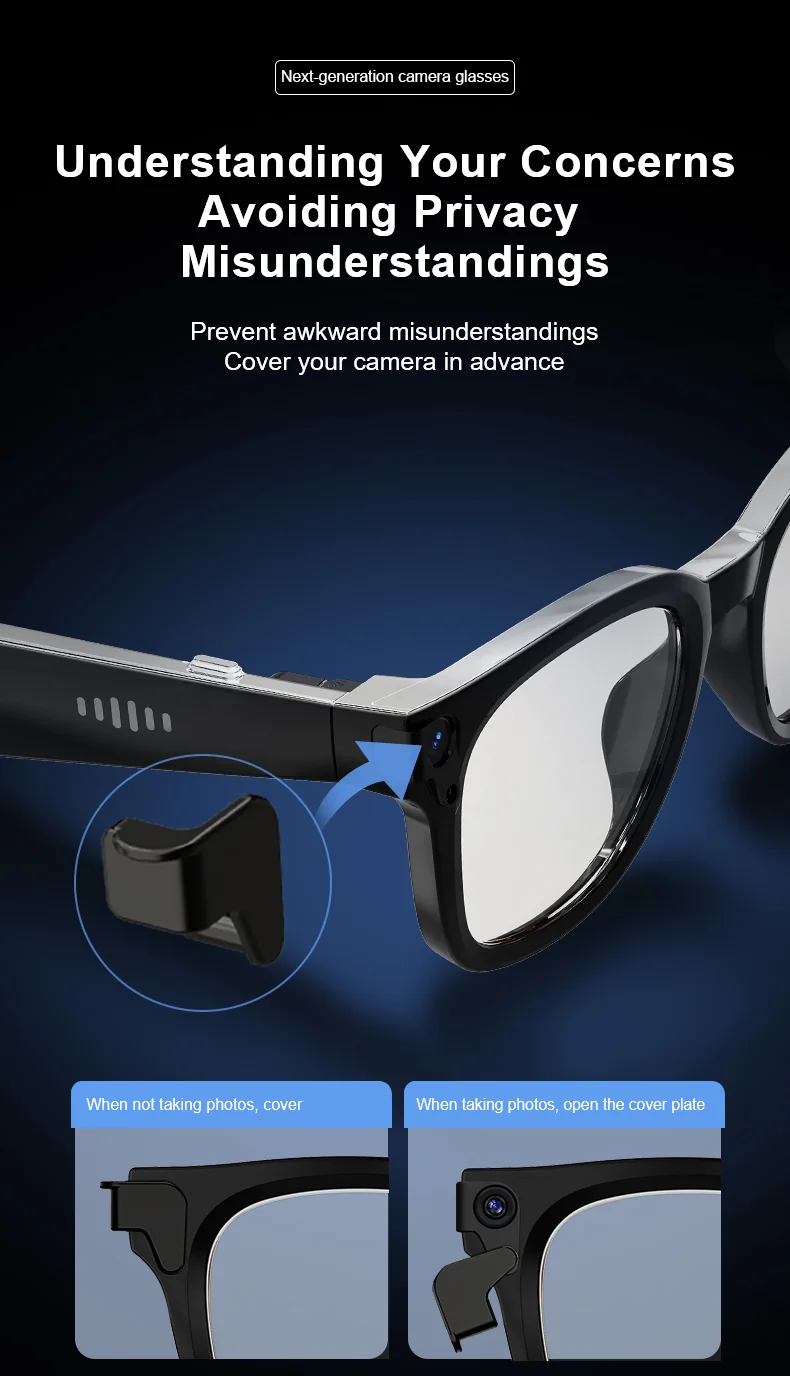

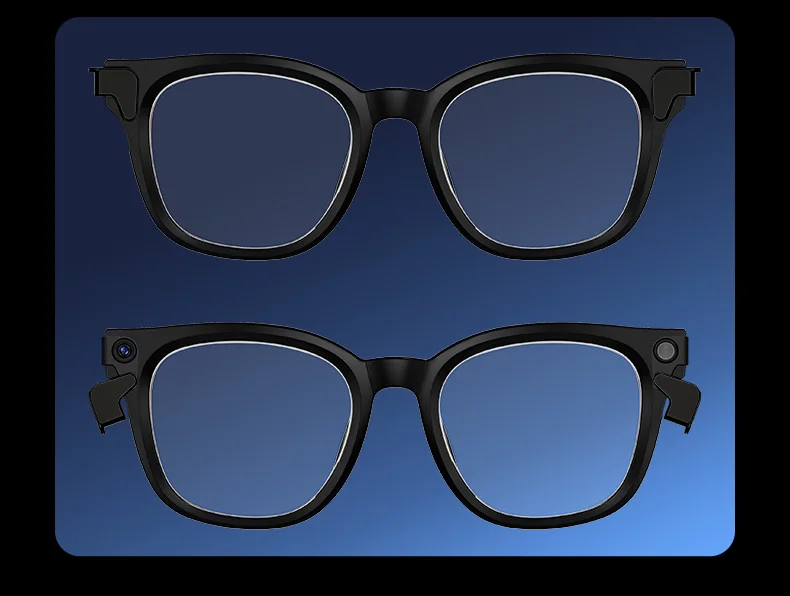

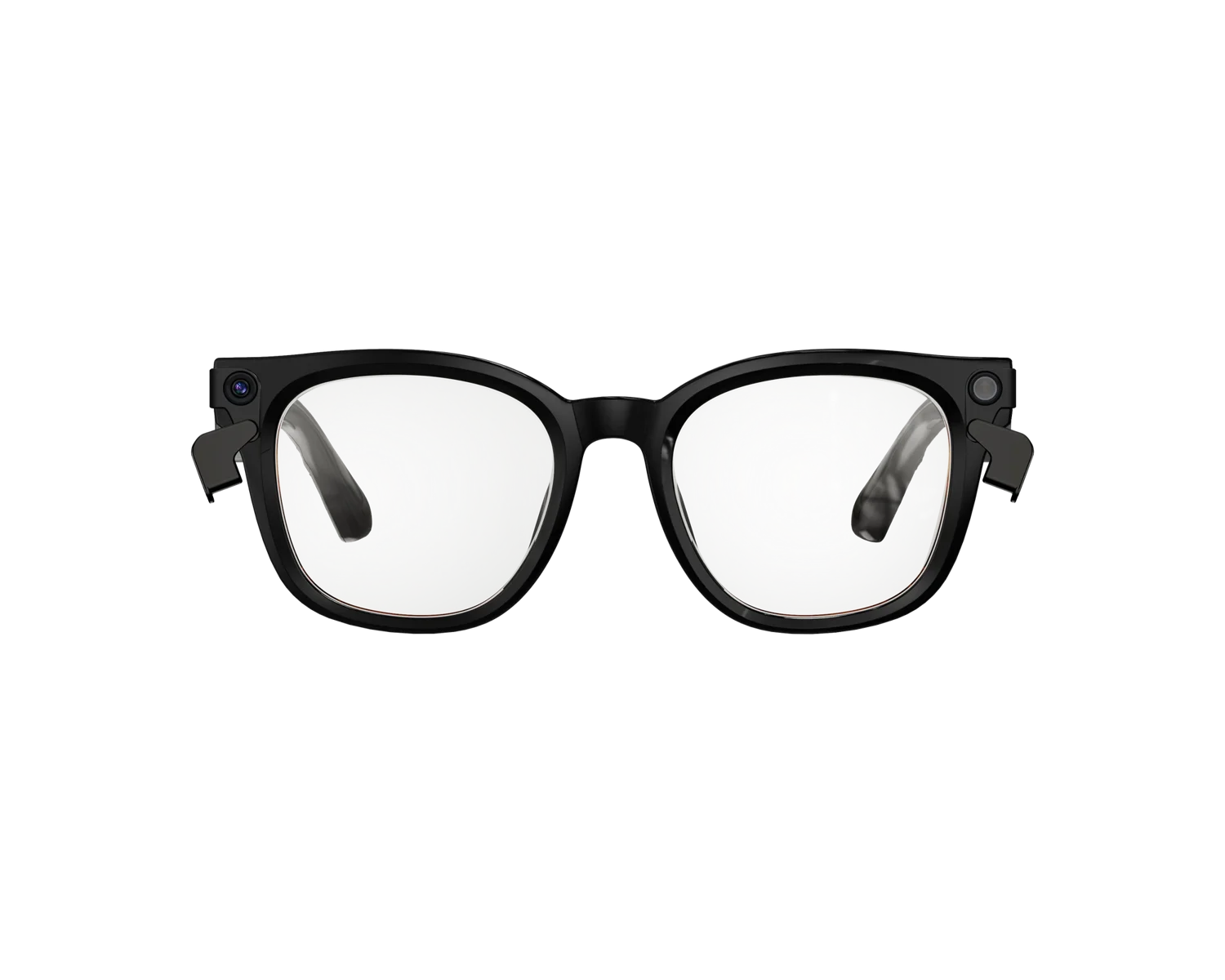

Removable camera cover
A physical cover for the lens, with removable configuration. It does not replace responsible recording practices.

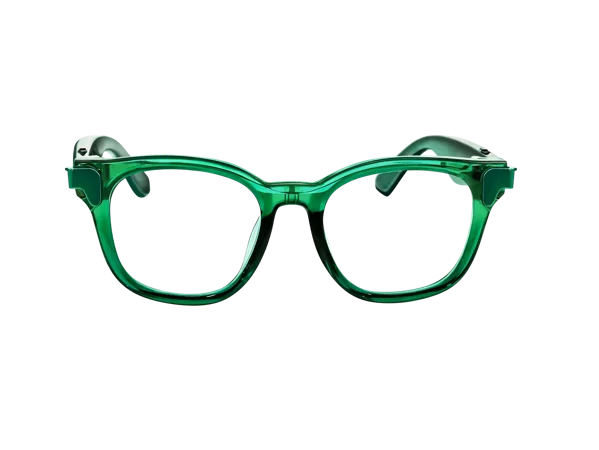

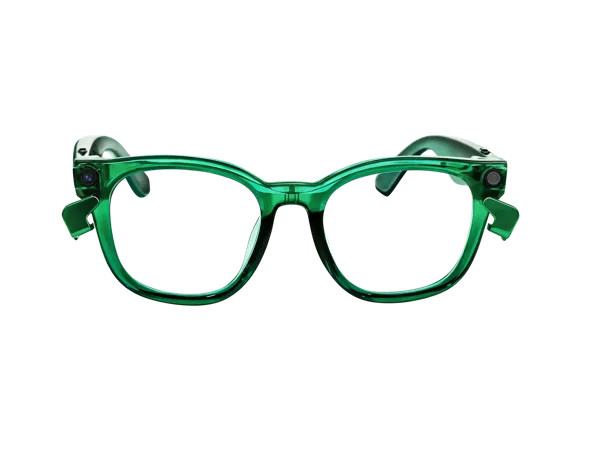

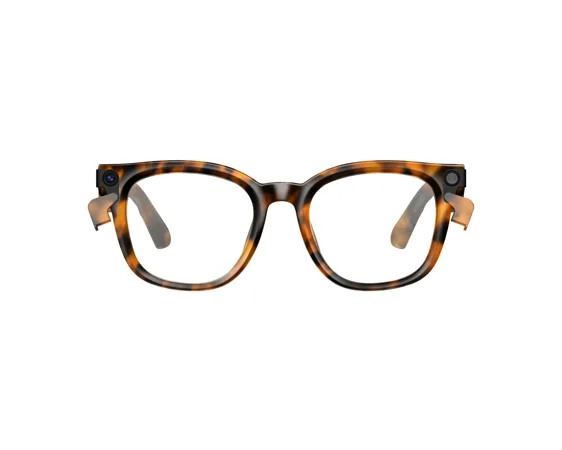

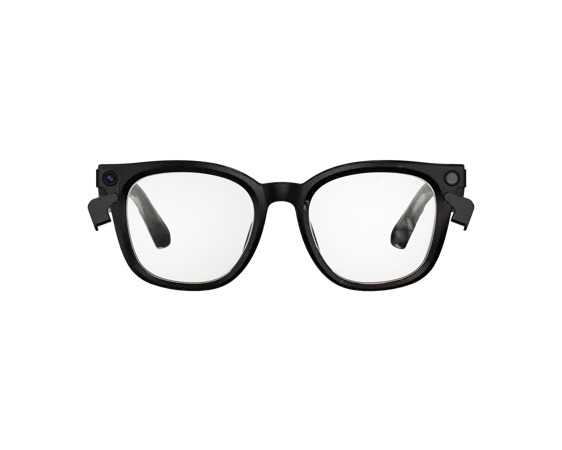

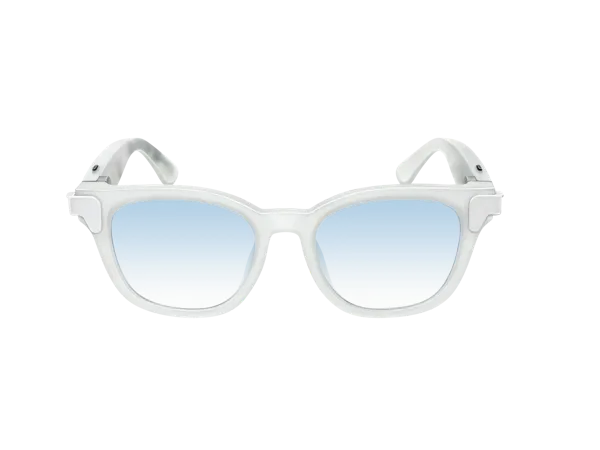

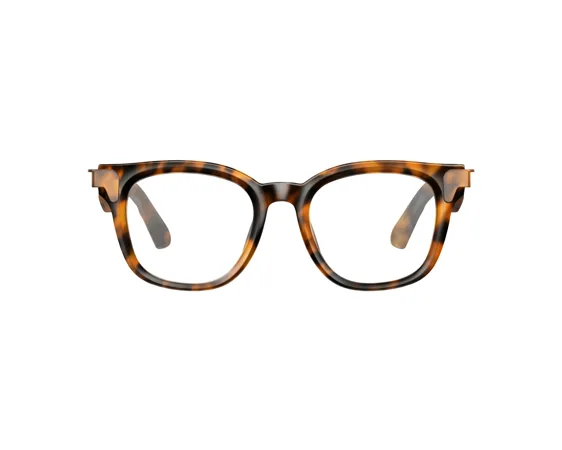

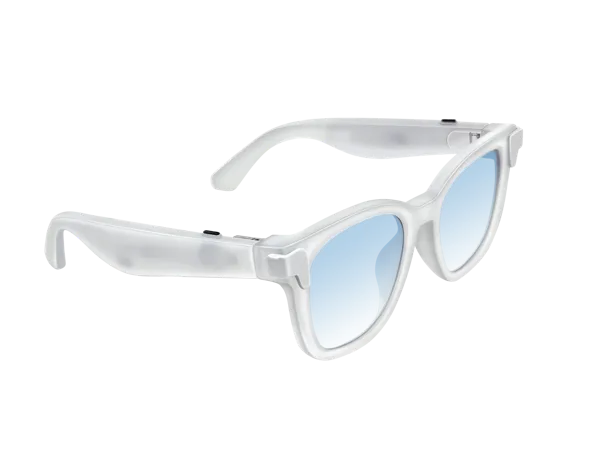

Four colour options
Black, translucent dark green, translucent white and tortoiseshell reference finishes.

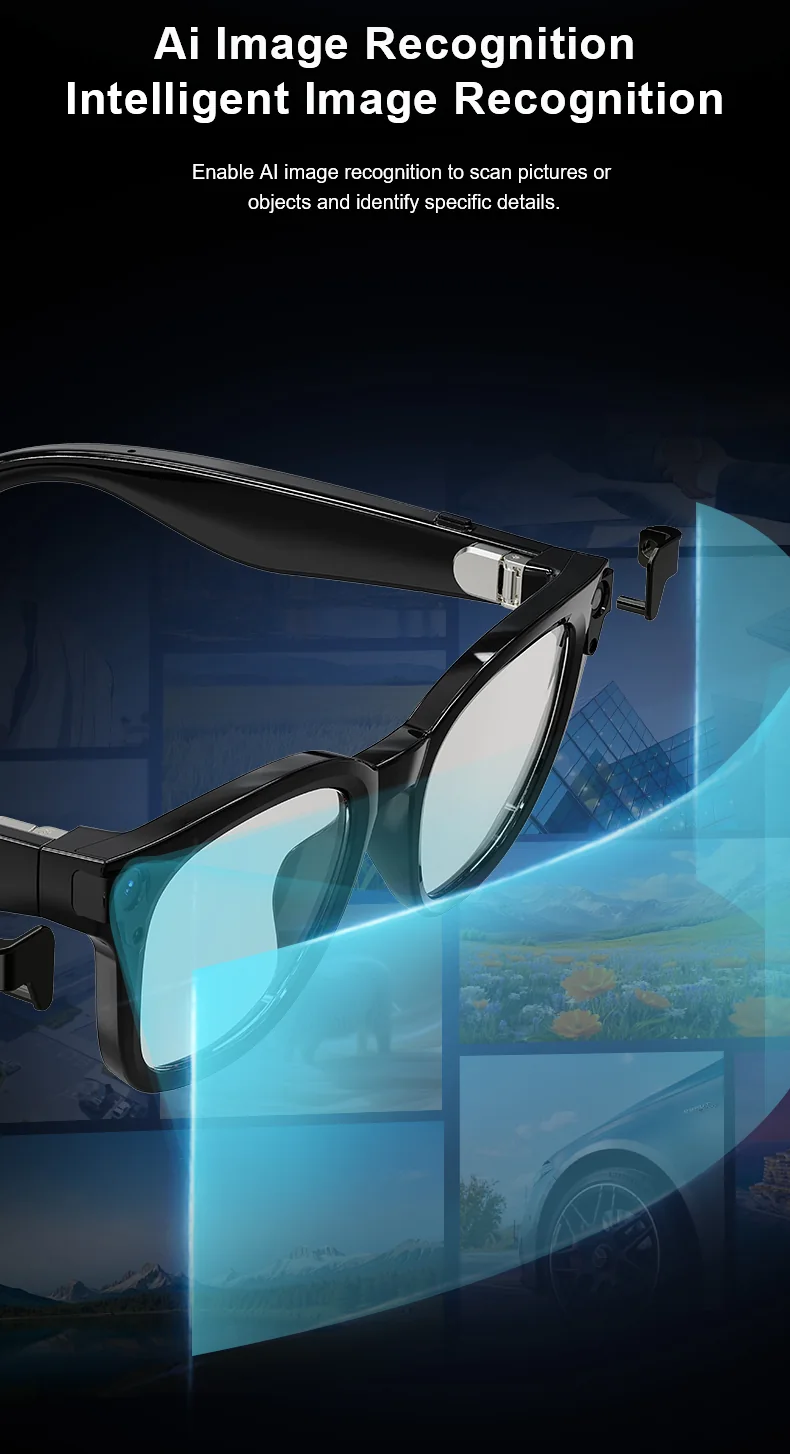

App integration
Camera-line reference SDK evaluation is available for scoped projects. Supported AI services depend on the app and configuration.

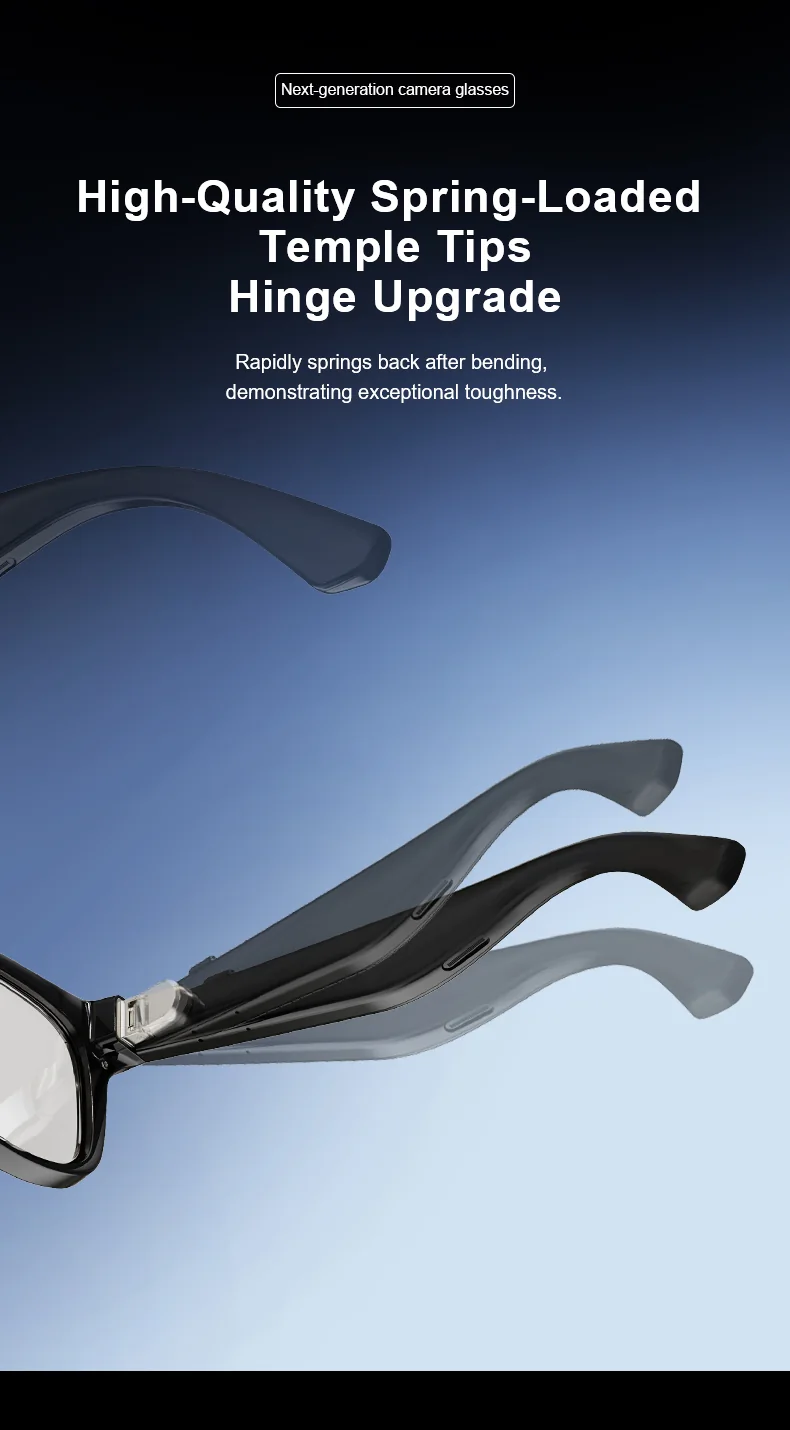

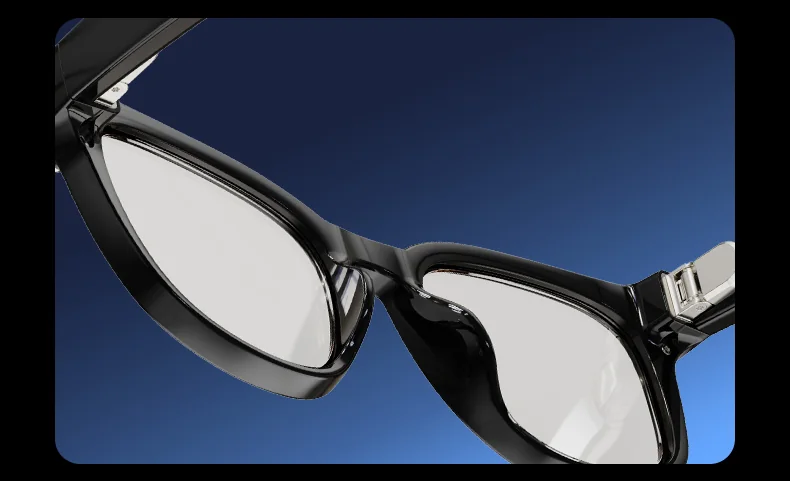

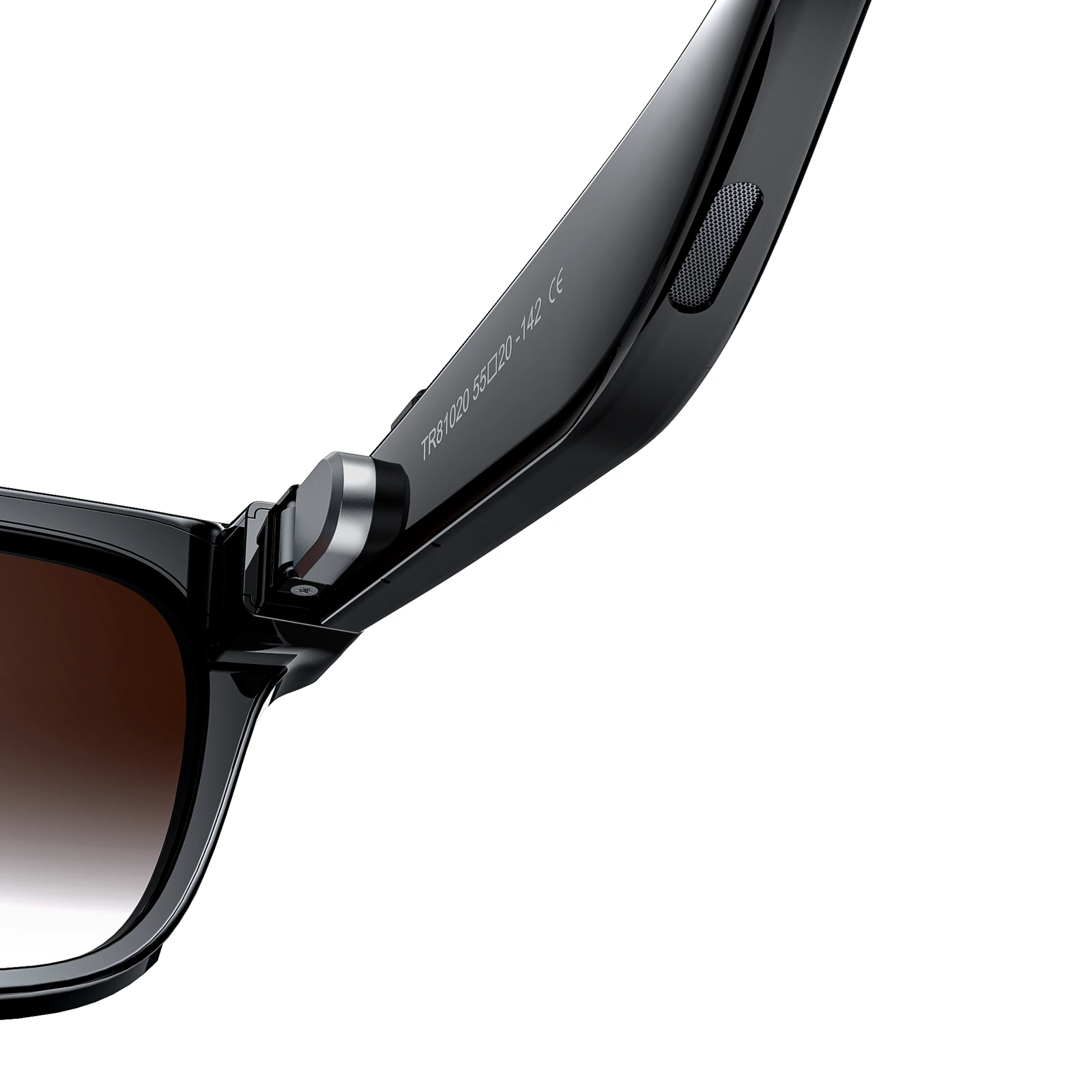

Spring-hinge temples
Spring-hinge temple construction shared with Scout One Pro.
Product overview
Promotional product presentation. See the caption for its source and scope.
Scout One product overview
Promotional edit using supplied product imagery; not camera sample footage.
Actual camera samples
Captured with Scout One. These supplied samples retain their original framing. Camera megapixels are not the video frame resolution; evaluate the delivered footage on your target screen.
Captured with Scout One (8MP camera), sample 1
Supplied actual camera sample. Original framing retained; conditions were not independently measured.
Captured with Scout One (8MP camera), sample 2
Supplied actual camera sample. Original framing retained; conditions were not independently measured.
Captured with Scout One (8MP camera), sample 3
Supplied actual camera sample. Original framing retained; conditions were not independently measured.
Captured with Scout One (8MP camera), sample 4
Supplied actual camera sample. Original framing retained; conditions were not independently measured.
Lighting, movement and software affect results. Supplied camera samples are not a controlled resolution, stabilisation or low-light benchmark.
Plan your integration and sample evaluation
Each platform has its own integration requirements. Camera and audio lines use separate SDKs; waveguide platforms require a supported app workflow, while Cinema requires a compatible video source. AI services, languages and offline functions are reviewed for the selected model and software version.
Camera, frame and finish details
Specifications
| Model code | FA-C10 |
|---|---|
| Bluetooth pairing name | Scout One |
| Mainboard | Jieli 7018 + Allwinner V821 |
| Weight | 56.5g |
| Bluetooth version | 5.3 |
| Bluetooth range | 10 m |
| Battery capacity | 220mAh |
| Speaker | 1509 composite membrane driver |

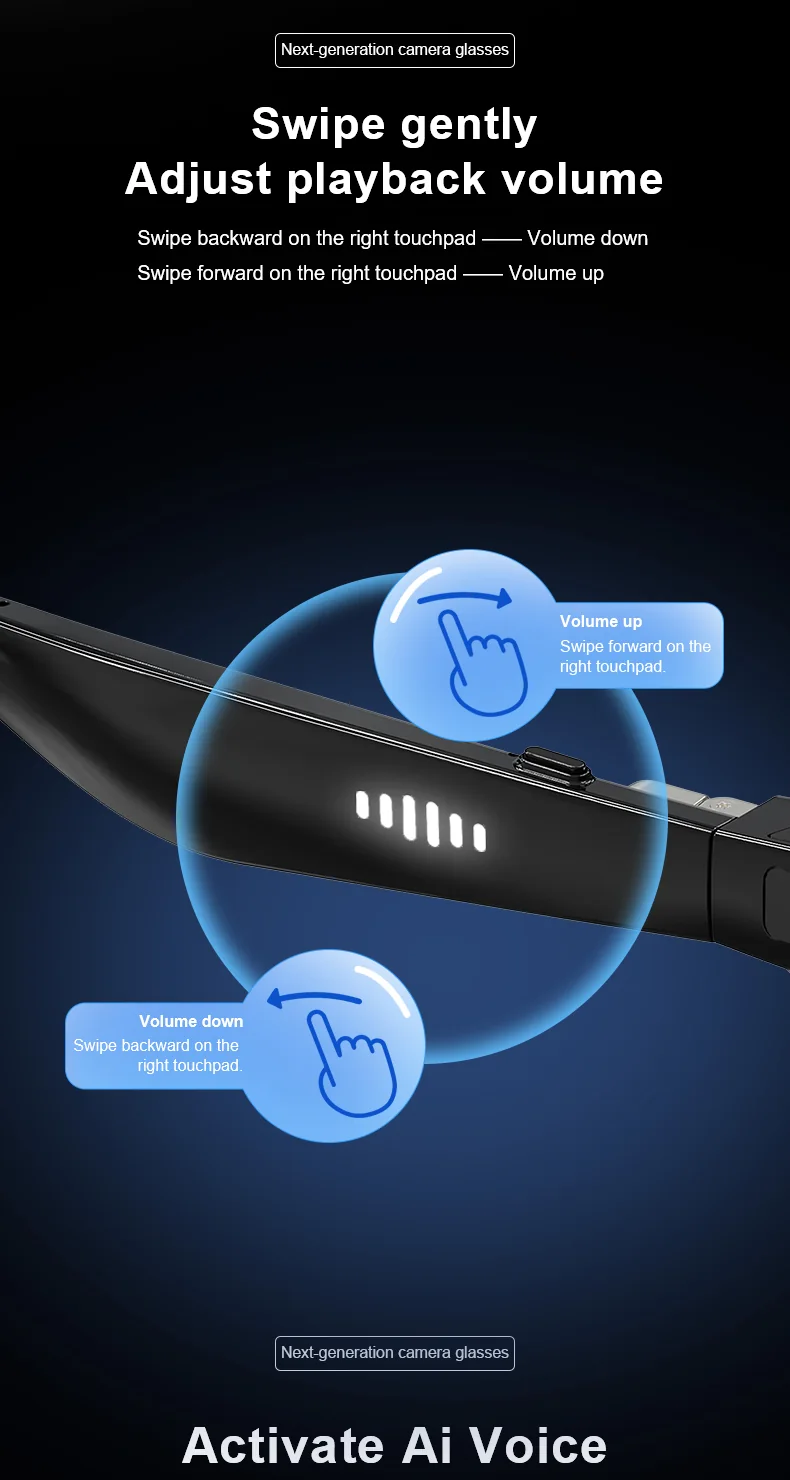

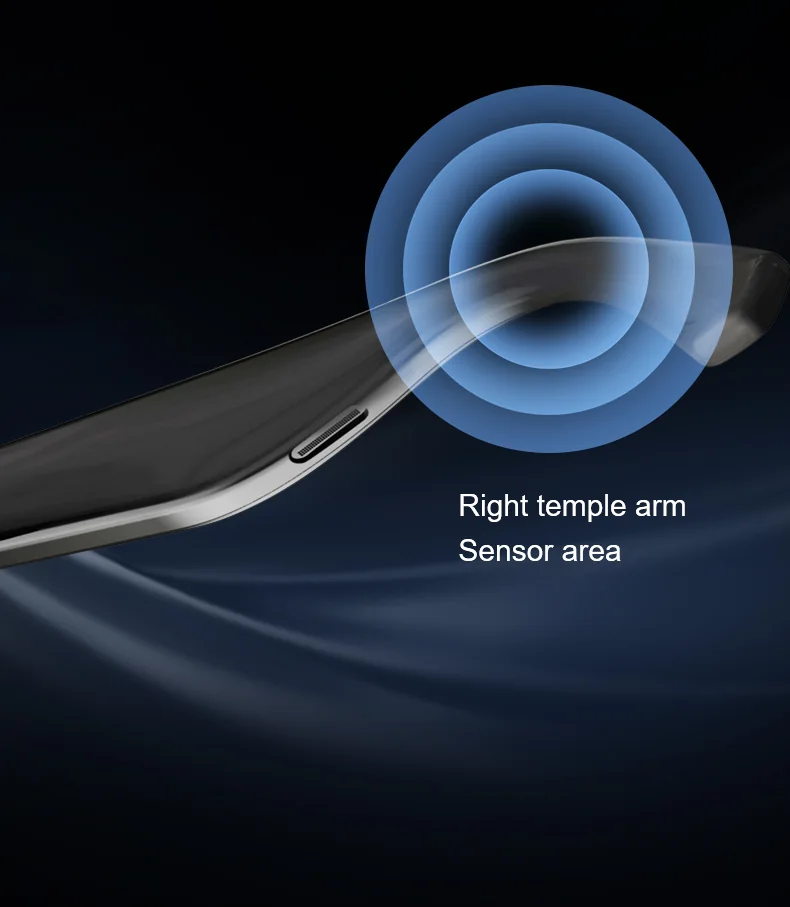

| Buttons | One tactile button on each temple, plus single-point touch and wear detection |
| Phone Bluetooth audio | Bluetooth audio from iOS, Android and HarmonyOS phones |
| Battery | Polymer battery (3C certified) |
| Camera cover | Physical open / close cover; removable |
| Fill light | Upper-left of the front frame |

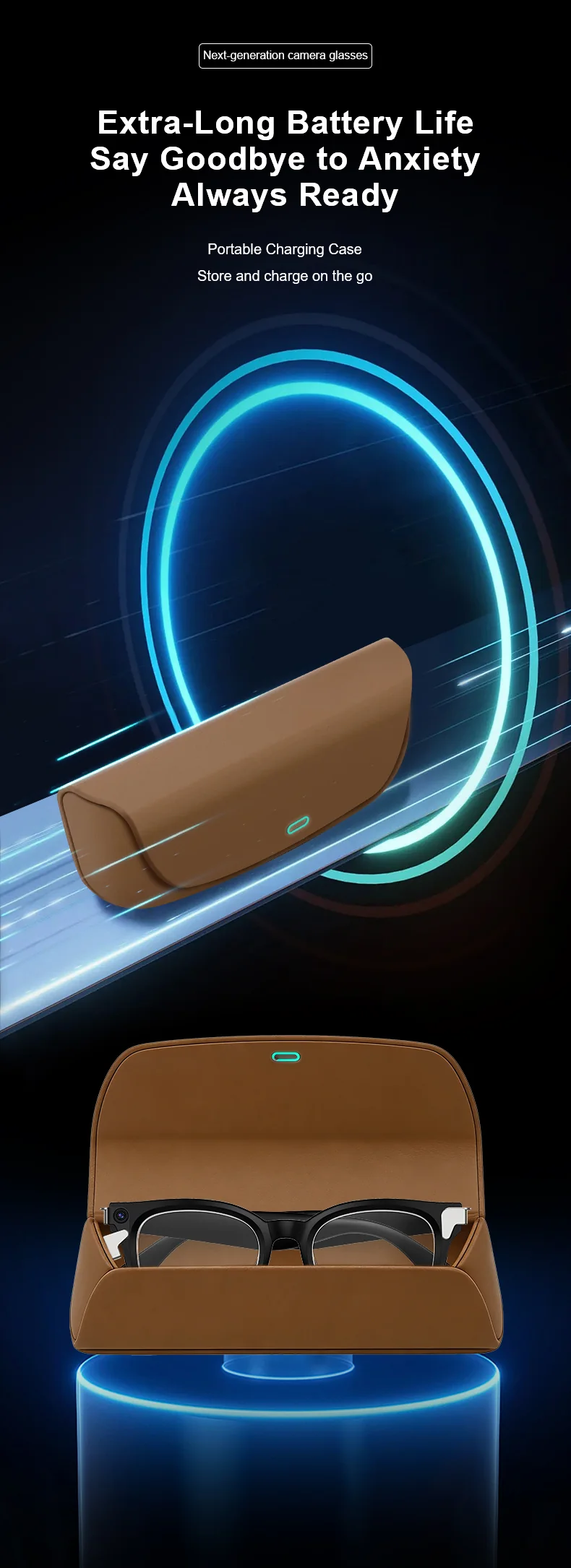

| Charging case | Storable charging case |
| Camera | 8 MP, 1080p, 30 fps, six-axis stabilisation |

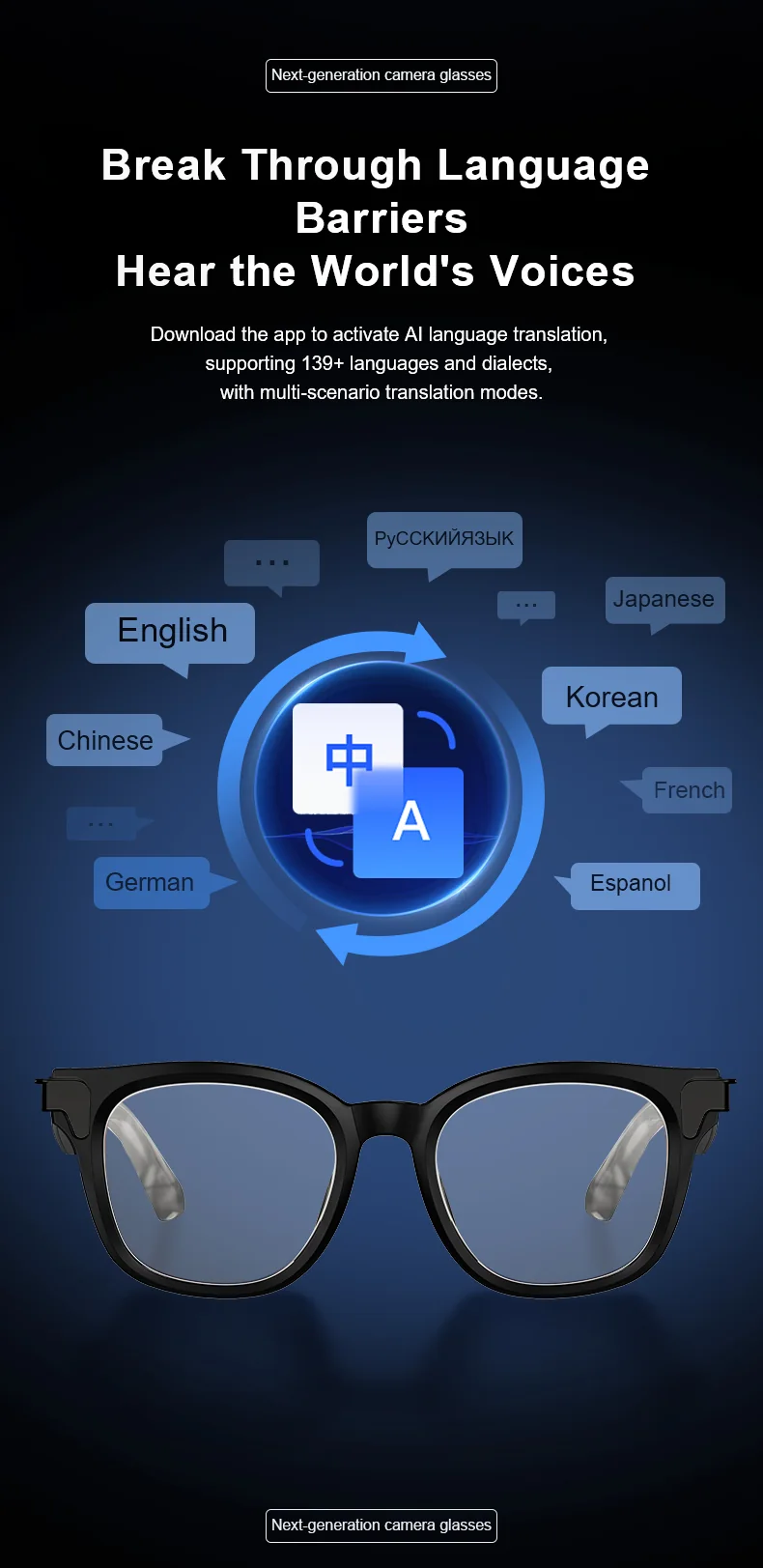

| AI features | App-connected AI functions; languages, service access and phone compatibility confirmed per project |
| Capture functions | Photo / audio / video |
| Dimensions | 154*160*52mm |
| Memory & storage | 64 MB RAM + 32 GB storage |
| Hinge | Spring hinge; shared temple construction with Scout One Pro |
Based on supplied product documentation; these figures are not independent test results. Confirm the current sample configuration, software version and test conditions before placing an order.
Questions buyers ask about Scout One
Where we quote per project rather than publish a number, it is because the number would be wrong half the time — not to make you ask.
- What is the minimum order quantity for Scout One?
- The standard mass-production MOQ is 1,000 units. Orders below 1,000 require confirmation of supply, price and lead time for the selected configuration. Evaluation samples are handled separately; tell us the model, quantity and destination for a sample quotation.
- What can we customise on Scout One?
- Projects range from logo and packaging changes on an existing model to app integration, scoped firmware changes and new hardware design. Custom offline wake words are available on supported configurations, not as a standard feature on every model. Camera and audio lines use different SDKs; app access, supported functions, engineering fees and IP deliverables are agreed for the specific project.
- Can you handle CE, FCC and RoHS certification for Scout One?
- Yes, for this platform. Scout One is the certified platform: it carries a CE RED Verification of Conformity, two FCC Grants of Equipment Authorization (DSS and DTS) and a RoHS Verification of Conformity, all issued against model M-20. The certificate images are on our certifications page and the eleven full test reports — safety, EMC, RF exposure, radio, MPE, RoHS and GB 4943.1 — are sent by email on request. One thing to know up front: those certificates are currently issued to Shenzhen Mudu Technology Co., Ltd. under the trade mark MUEDO, not yet to the Future Audio entity. For your own market we arrange testing issued in your entity's name.
- How long does a sample take?
- It depends entirely on what changes. A sample built on this platform as it stands is a different job from one waiting on a new frame tool, so we do not publish a single figure that would be wrong half the time. Send the spec and we will come back with a date we can actually commit to. Samples ship from Shenzhen.
- Can the AI features work with our own model or backend?
- The AI behaviour that ships on this platform is what appears in the specification table above — nothing more is implied. Firmware and companion-app customisation are both in ODM scope, so whether your own model or backend can be wired in comes down to the chipset on this particular platform and what the integration needs to do. Send us the requirement and we will tell you straight whether this platform can carry it or whether another one fits better.
Something not covered? Ask us directly or sherry@futaudio.com.
Build on Scout One
Private label, custom frame, custom firmware, or a straight OEM order — tell us the target and we will scope it.
